Technical Specifications

Standard configurations. Custom stroke, speed, and ejector available.

Model	Capacity	Stroke	Speed	Motor	Weight	Energy
HKM3-1000	1,000 T	340 mm	35 spm	75 kW	~90 T	60 kJ
HKM3-1600	1,600 T	350 mm	30 spm	110 kW	~135 T	80 kJ
HKM3-2000	2,000 T	370 mm	28 spm	132 kW	~165 T	100 kJ
HKM3-2500	2,500 T	400 mm	25 spm	160 kW	~200 T	120 kJ
HKM3-3150	3,150 T	420 mm	22 spm	200 kW	~240 T	150 kJ
HKM3-4000	4,000 T	450 mm	20 spm	250 kW	~310 T	180 kJ
HKM3-5000	5,000 T	480 mm	18 spm	315 kW	~380 T	220 kJ

Technical specifications for reference. Custom configurations available on request.

Key Features

Patented dual-support toggle mechanism delivers precise slide guidance and high rigidity under eccentric loads.

High-slip motor combined with a large flywheel provides instantaneous energy release for demanding forging strokes.

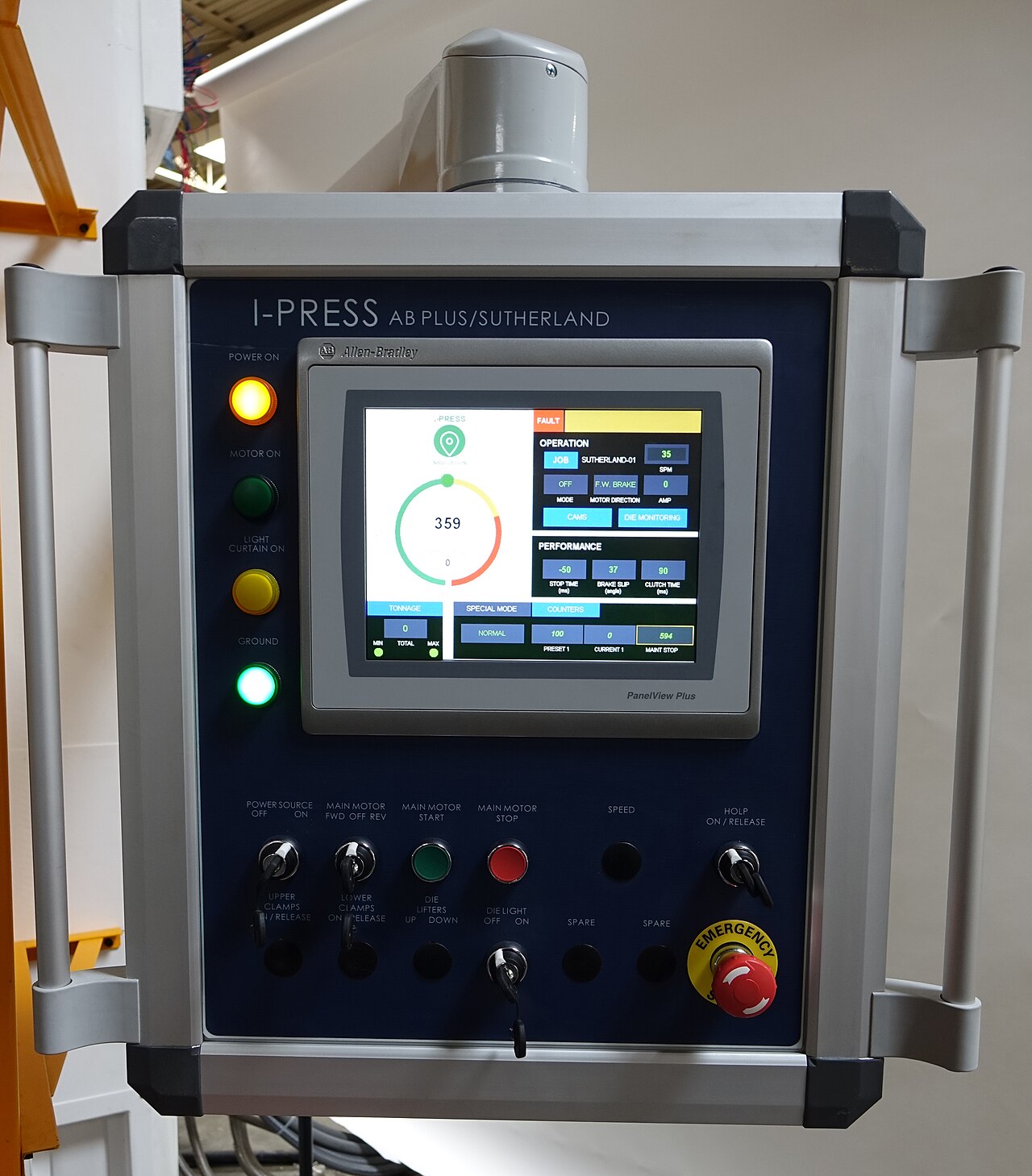

Programmable logic controller with industrial Ethernet. Ready for integration into automated production lines.

Oil-immersed multi-plate wet clutch and brake system for reliable, maintenance-friendly operation in harsh environments.

Automatic centralized lubrication system with real-time monitoring. Interlocked with main drive for fail-safe operation.

Hydraulic overload protection system prevents damage from jamming or overloading. Quick reset after trip.
